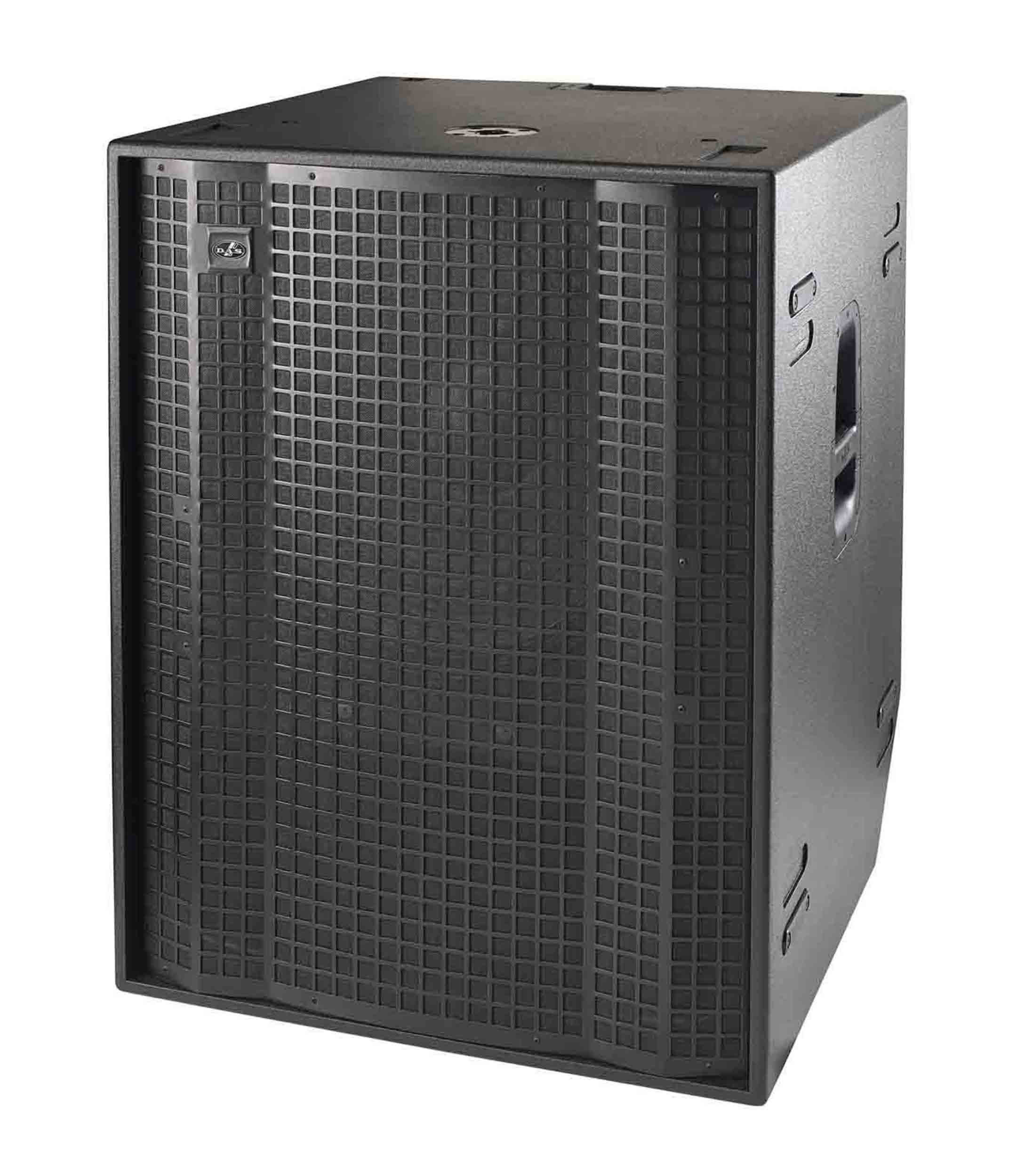

DAS Audio EVENT-121A 3200 Watt, 21 inch Powered Subwoofer
- Active direct radiating rear-loaded subwoofer system.
- 1 x 21″ DAS 21LFN neodymium loudspeaker.
- 3200W Peak – 1600 Continuous.
- Class D amplifier and digital signal processing (DSP).
- Two balanced inputs with stereo filtered output connections.
- Variable low-pass filter 63 Hz-100 Hz.
- Top located pole mount socket for TRD-6 optional pole mount.
- Rear located wheels to ease transport.
- Top grade Birch cabinet construction.
- Durable ISO-flex finish.
The EVENT-121A is a direct radiating rear-loaded powered subwoofer system that incorporates a single 21-inch neodymium loudspeaker providing earth-moving low-frequency reproduction for the Event Series line arrays. The combination of direct radiation and rear-loading provides a high output, tight and accurate sub-bass response.
The EVENT-121A employs the new DAS 21LFN loudspeaker which offers impressive features such as a 4″ sandwich split winding voice coil, a powerful FEA optimized neodymium magnet assembly and an FEA optimized suspension system with double silicon spider. The result is a loudspeaker with exceptional sensitivity, high power handling capacity and a quality suspension design capable of withstanding the stress and mechanical fatigue of today´s high-power pro audio systems. An aluminum demodulating ring benefits lower distortion and effective forced ventilation of the voice coil gap provides for a high thermal rating and reduced power compression.

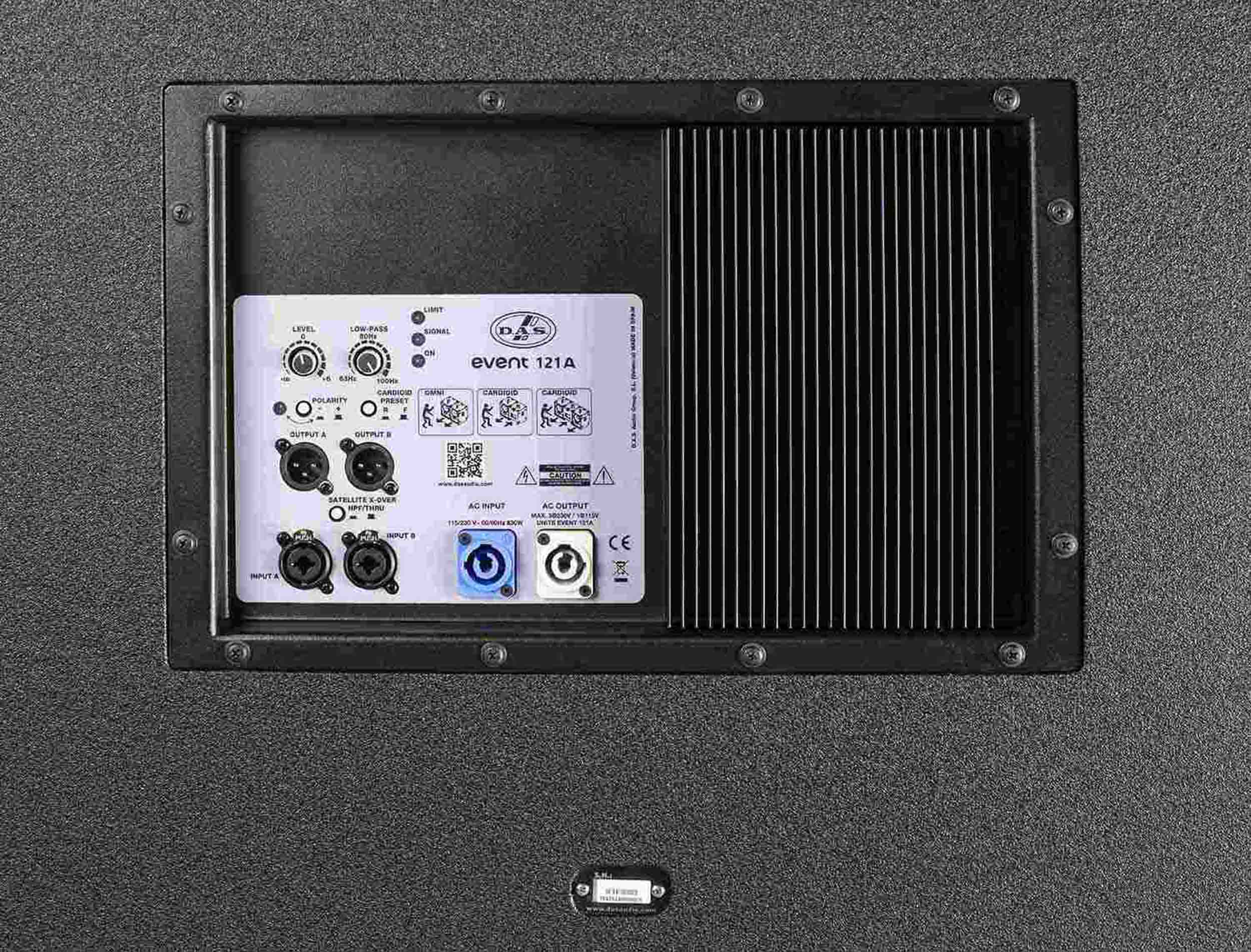

The EVENT-121A electronics package includes a 3200 W peak Class D amplifier and 24-bit high-end DSP for top quality audio reproduction. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 63 Hz to 100 Hz. A unique “cardioid preset” button simplifies the use of subs in cardioid configurations, making the setup of two to three units a snap without the need for an external DSP.
The EVENT-121A is phase response coherent with the EVENT-208A, EVENT-210A and EVENT-212A active tops offering precise alignment. Two balanced inputs with stereo filtered outputs which can be switched to pass-through connections are provided.
Frequency Range (-10 dB): 30 Hz – 125 Hz
Maximum Peak SPL at 1 m: 141 dB
Nominal Amplifier Power (continuous): 1600 W
Nominal Amplifier Power (peak): 3200 W
Input Type: Balanced
Input Impedance: 20 kohms
AC Input Connector: powerCon NAC3FCA
AC Output Connector: powerCON NAC3FCB
Operating Range: 90-250 VAC
Current Draw 115 V: 7.2 A
Current Draw 230 V: 3.6 A
Dimensions (H x W x D): (965 x 740 x 755) mm, (38,0 x 29,1 x 29,7) in
Net Weight: 78,5 kg (173,1 lb)
|Manufacturer Part Number||EVENT-121A|
