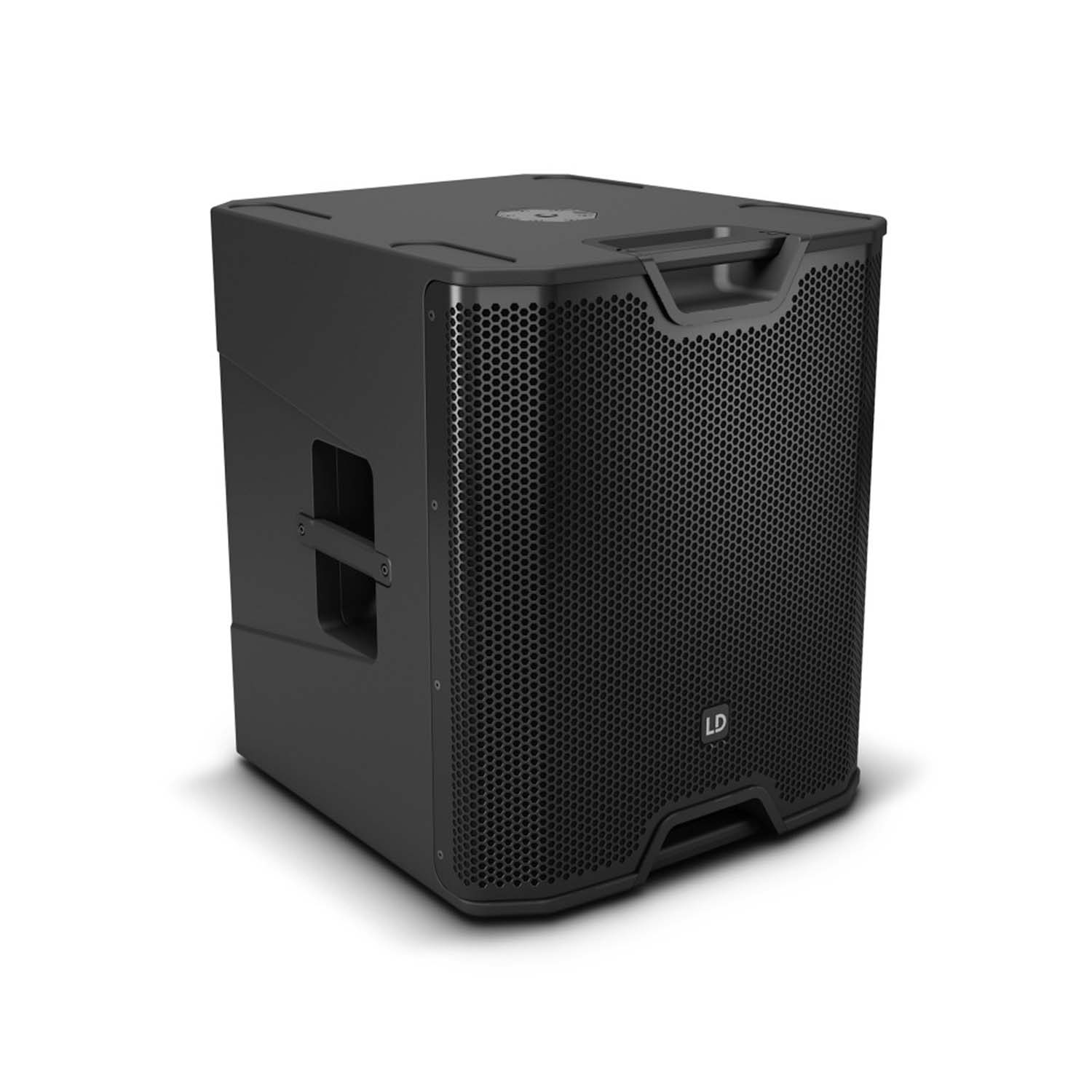

LD Systems ICOA SUB 15 A, Powered 15" Bass Reflex PA Subwoofer

The LD Systems ICOA SUB 15 A can deliver as much bass as you want - to get the people rocking and entice them to the dance floor. It can even lend a multimedia presentation that special oomph it needs to reach its audience.

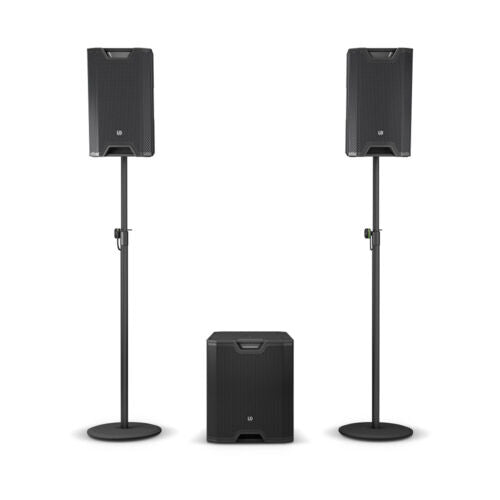

The ICOA SUB pumps out serious bass and gives you greater headroom and a clearer sound. This is because your subwoofer relieves the main speaker, whose woofers are now less burdened by high-energy bass impulses, resulting in less intermodulation distortion. Even at higher volumes, the sound doesn't get muffled. Voices and instruments stay crystal clear.

Thanks to its powerful Class D amplifier with 400-watt RMS or 1600-watt peak output, you have some serious power at your command. The presets of the integrated DynX DSP - which offers crossover frequencies of 80, 100 and 120 Hz - let you finely balance your ICOA SUB perfectly with your system. Signal polarity can also be reversed and the SUB offers a delay line-preset for distances up to 10 meters.

When your needs begin to expand as the venues get bigger, your setup can grow along with you. Simply add more ICOA SUBs, which can be operated in parallel, giving you more and more power. You can also take advantage of the cardioid-preset. Simply position the additional subwoofers next to your ICOA SUB facing to the rear and enable the cardioid-preset to get a quieter and controlled low-end at the back while still keeping the punch at the front.

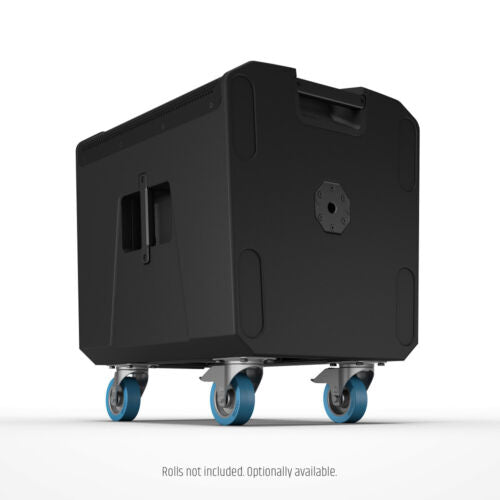

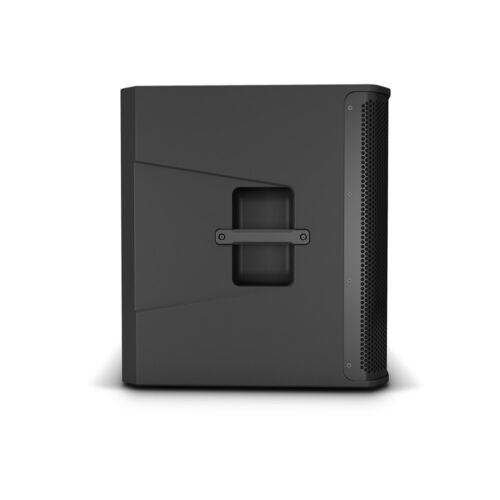

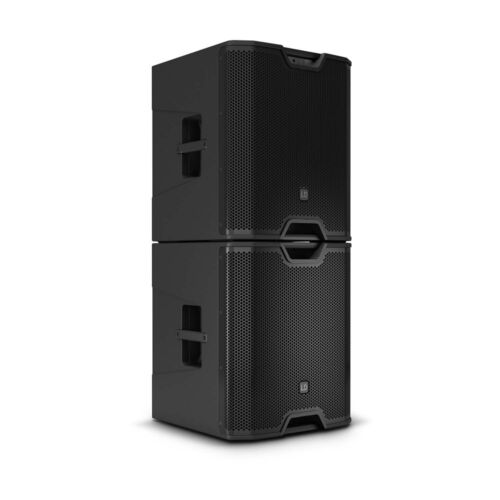

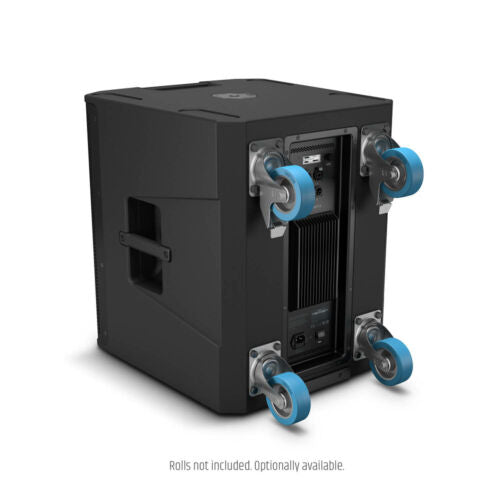

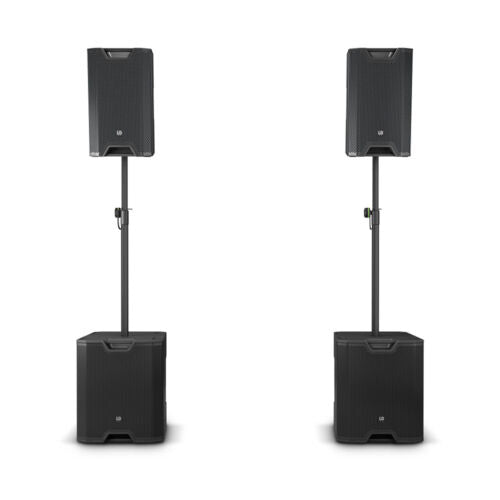

The rugged housings made of 18 mm laminated wood can be stacked, while the M20 thread on top lets you mount the main speakers using a distance pole. Transport is simplified by mounting rollers to the rear. Corner protectors guard the edges during setup. To keep the ICOA SUB from slipping out of your hands, its four aluminium grips are covered in rubber.

Product Specification:

Product Type: PA subwoofer

Type: Powered

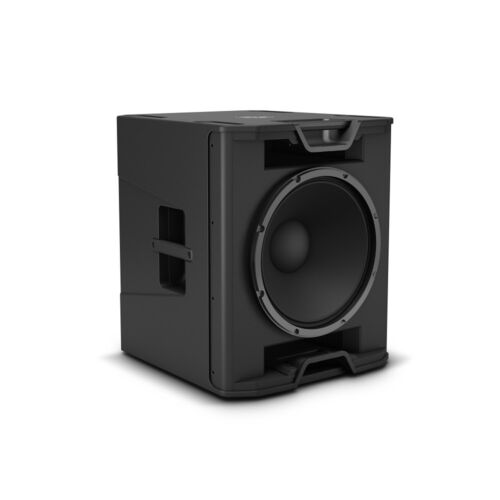

Low/Mid Driver Dimensions: 15 "

Woofer Size: 381 mm

Woofer Magnet: Ferrite

Woofer Brand: Custom-made

Woofer Voice Coil: 3 "

Woofer Voice Coil (mm): 76.5 mm

Amplifier: Class D

RMS: 400 W

Peak Power: 1600 W

Max. SPL (peak): 131 dB

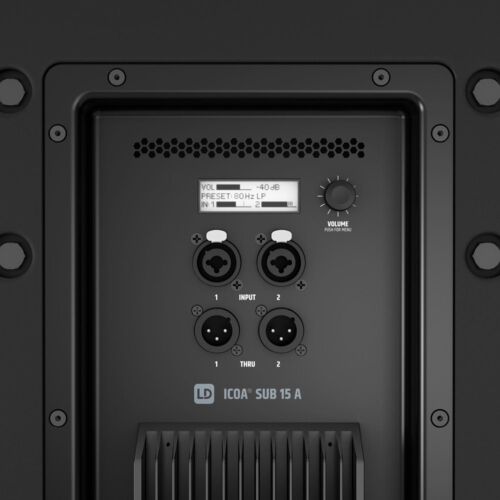

Controls: Push encoder

Indicators: LC display

Line Inputs: 2

Line Input Connectors: XLR/6.3mm jack combo jacks (balanced)

Line Outputs: 2

Line Output Connectors: XLR

Operating Voltage: 100 - 240 V

Power Consumption (max.): 675 W

Operating Temperature: 0 - 40 °C

Relative Humidity: < 60% (non-condensing)

Cabinet Material: 18 mm Multiplex

Cabinet Construction: Bass Reflex

Dimensions: 510 mm, 598 mm, 552 mm

Weight: 32,5 kg
